Traficop Combination Tables

Achieving a consistent profile for Raised Tables and Junctions with a hard-wearing, modular system

Traffic Calming

Traficop Combination Tables

Traficop_Combination_Table_Rediweld_Traffic_2
Traficop Combination Table
Traficop_Combination_Table_Pedestrian_Crossing_Rediweld_Traffic
Traficop Combination Table
Traficop_Combination_Table_Speed_Cushion_Rediweld_Traffic
Traficop Combination Table
Traficop_Combination_Table_Black_Speed Cushion_Cyclist_Rediweld_Traffic
Traficop Combination Table

Consistent
Consistent profile from preformed modules.

No Excavation
Bolt down with no excavation and no spoil.

Versatile
Different widths, lengths and heights, either kerb to kerb or tapered sides.

Quiet
Energy absorbent reducing noise and vibrations.

Markings
High visbility markings moulded in at manufacture.

Environment
Recycled product made in the UK.

Traficop Combination Tables

Technical Information

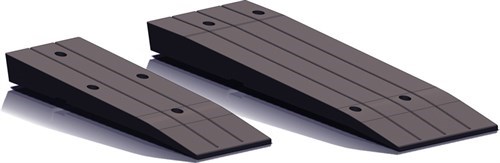

Combination Table *infill required*

Module  Height (mm) Length (mm) Width (mm) Fixings Weight (kg)
1:16 Combination Table Rmp 75 1000 400 5 26.0
Corner LH or RH 75 1000  350  5 15.0
Long Side 75 1000  350  18.0
1:10 Combination Table Ramp 75 765 300  12.0
Corner LH or RH 75 1000  350  15.0
Long side 75 1000 350 5 18.0



Frequently asked questions

Can’t find the answer you’re looking for? Reach out to our customer support team

What type of infill should I use for the Combination Tables?

We would recommend the use of dense Bitumen Macadam (DBM) or similar - typically 50mm of base course and 25mm of wearing course. The weight of the base course in tonnes is the infill area (in m2) divided by 10 and for the wearing course, the area is divided by 20.

Method Statement

Download our Traficop Combination Table installation and information sheets
