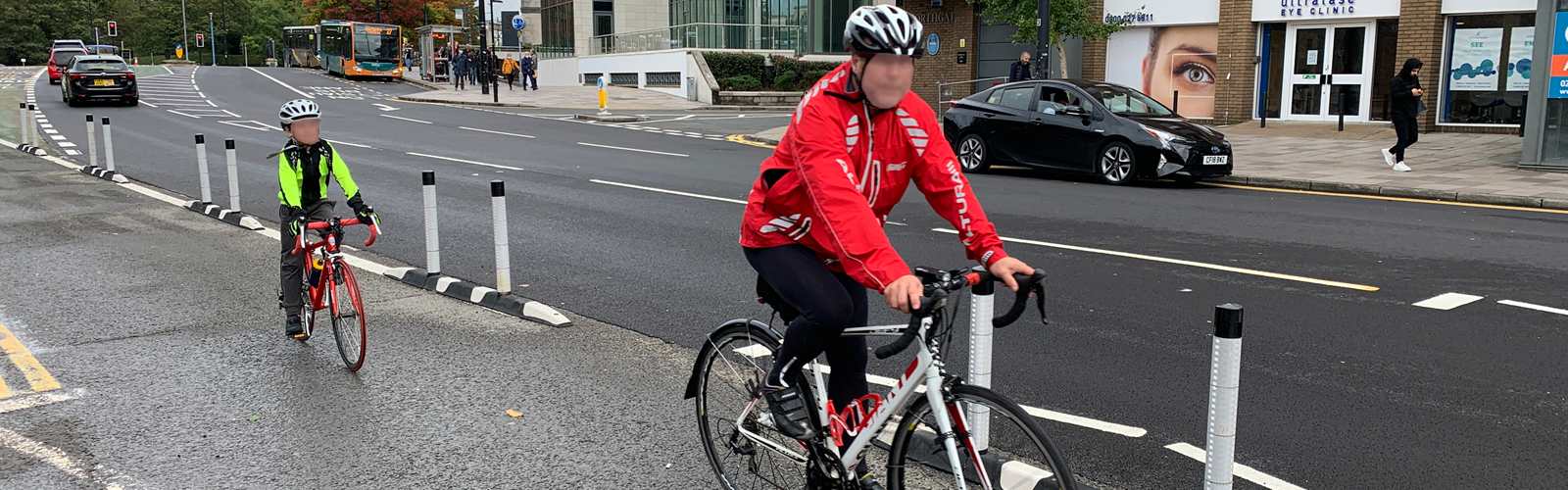

Greenwich_WandOrca_Jislon_Pole_Cone_Cycle_Lane_Products_Rediweld_Traffic_3

Greenwich WandOrca

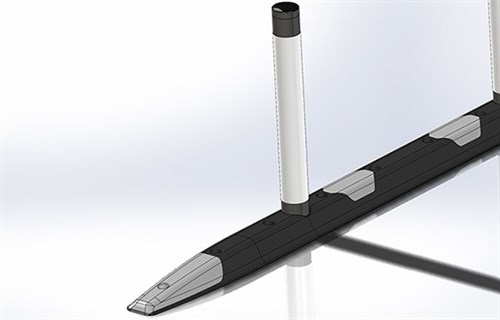

The Greenwich WandOrca offers narrow vertical and horizontal measures integrated into one product, combining a Pole Cone installed every 1 metre or a glass reflective dome. This product can be used in multiple applications from 1.5mtr long upwards

Cycle Lane Products

Greenwich WandOrca

Greenwich_WandOrca_Jislon_Pole_Cone_Rediweld_Traffic_2

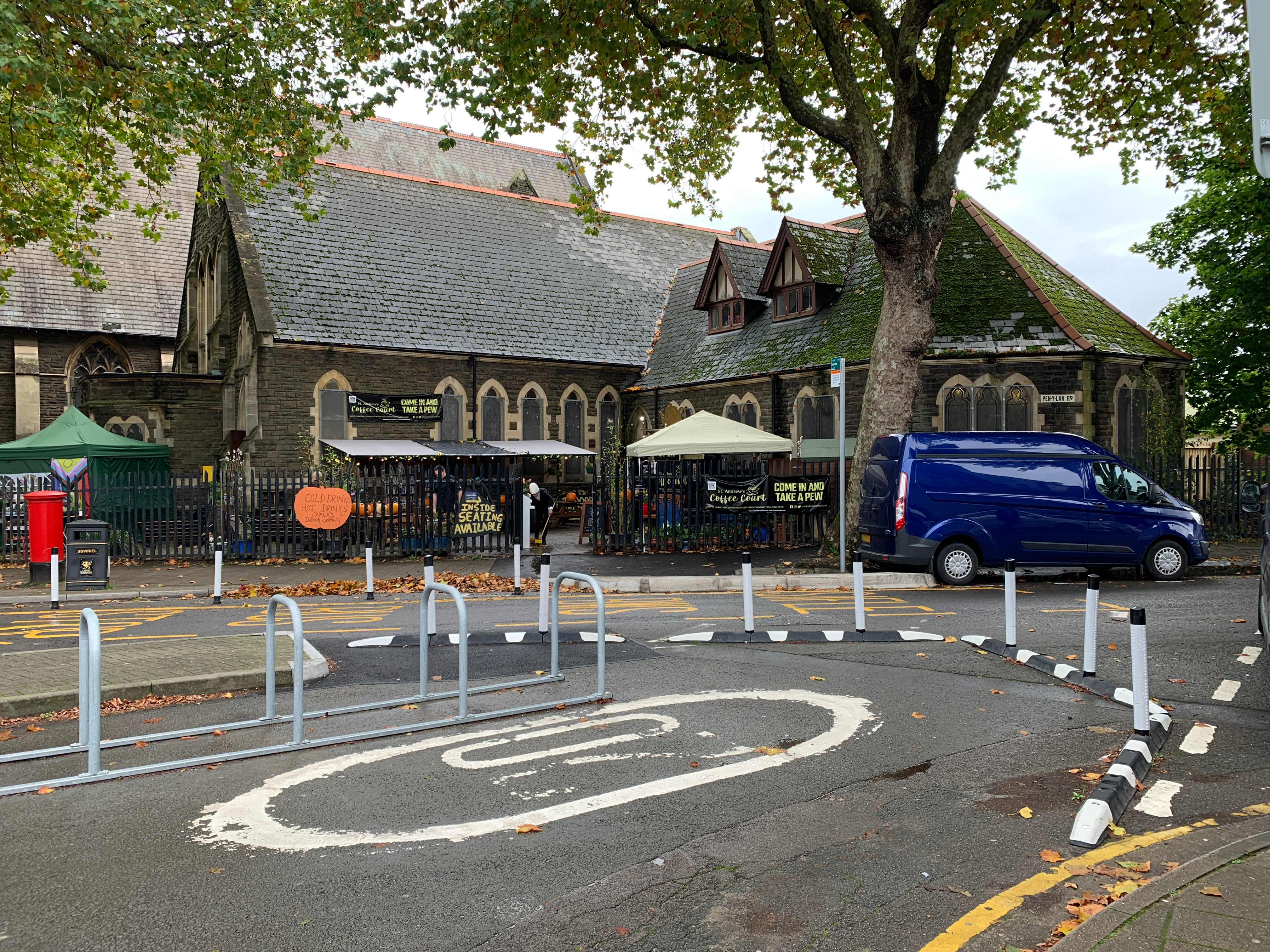

Greenwich WandOrcas with Jislon Pole Cones
Cycle_Lane_Products_Greenwich_WandOrca_Jislon_Pole_Cone_Rediweld_Traffic_Product_Header

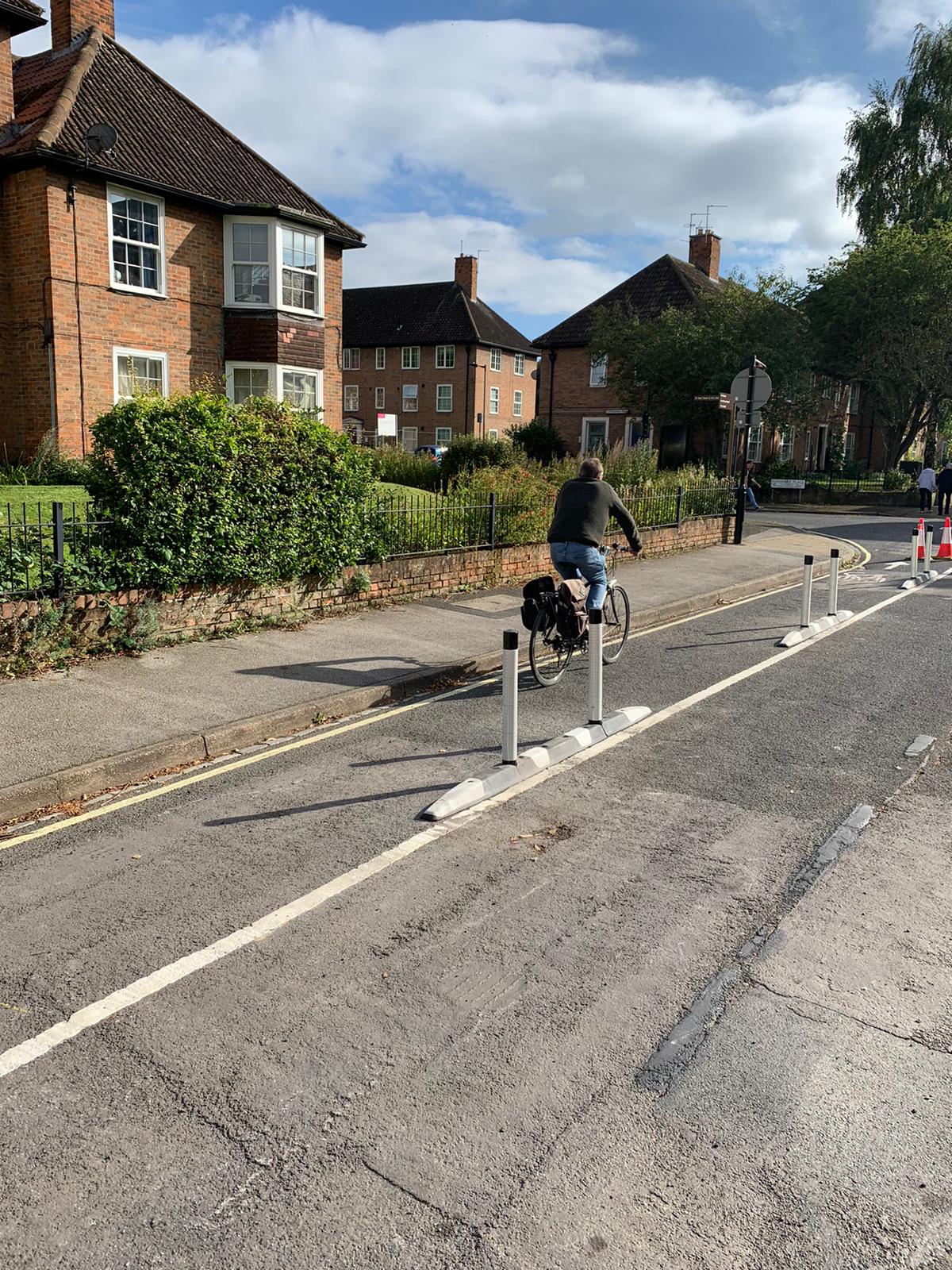

Greenwich WandOrcas with Jislon Pole Cones
Greenwich_WandOrca_Jislon_Pole_Cone_Rediweld_Traffic_3
Greenwich WandOrcas with Jislon Pole Cones
Greenwich_WandOrca_Jislon_Pole_Cone_Cycle_Lane_Products_Rediweld_Traffic_4

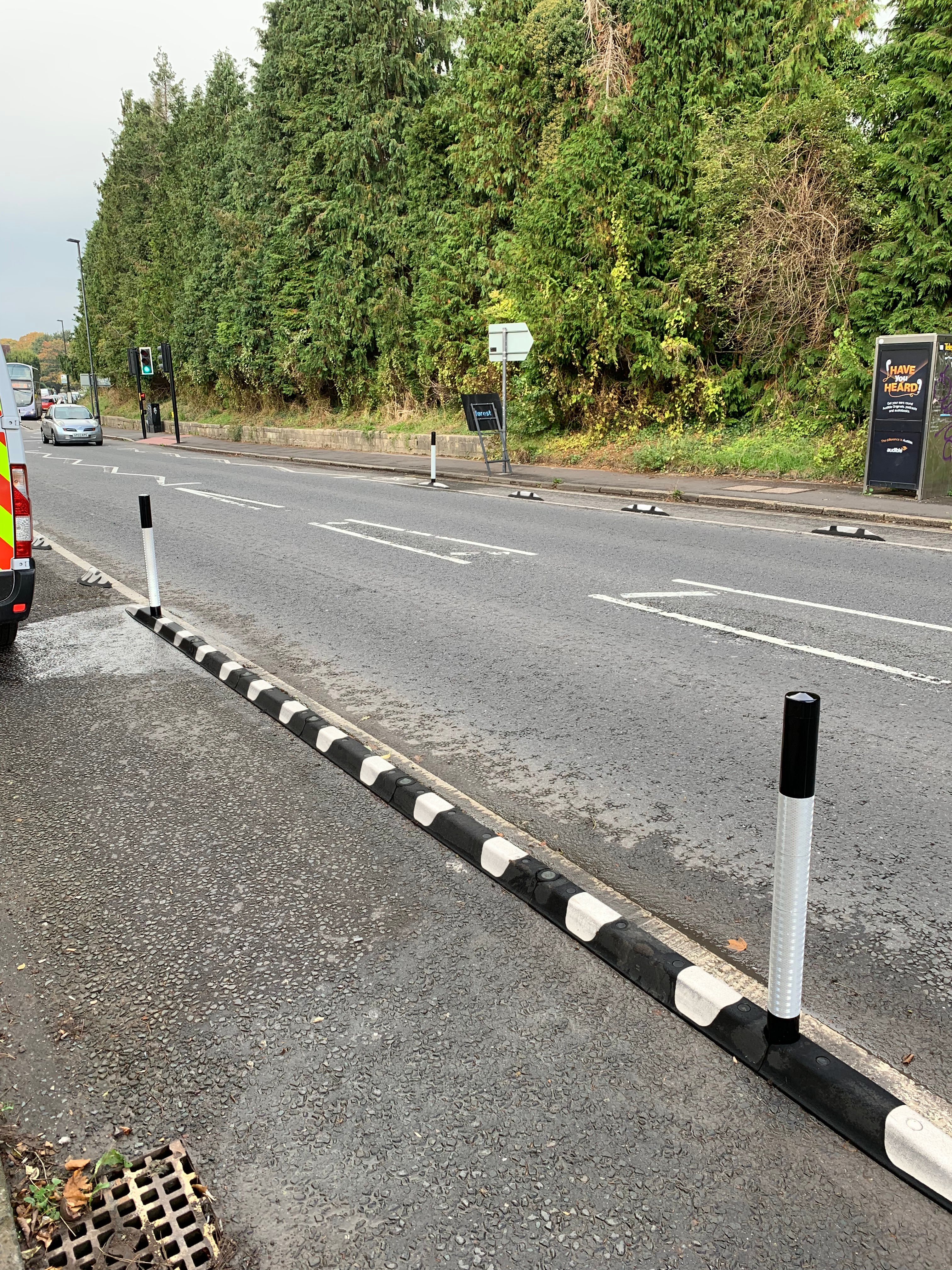

Greenwich WandOrcas with Jislon Pole Cones
Greenwich_WandOrca_Jislon_Pole_Cone_Rediweld_Traffic_4

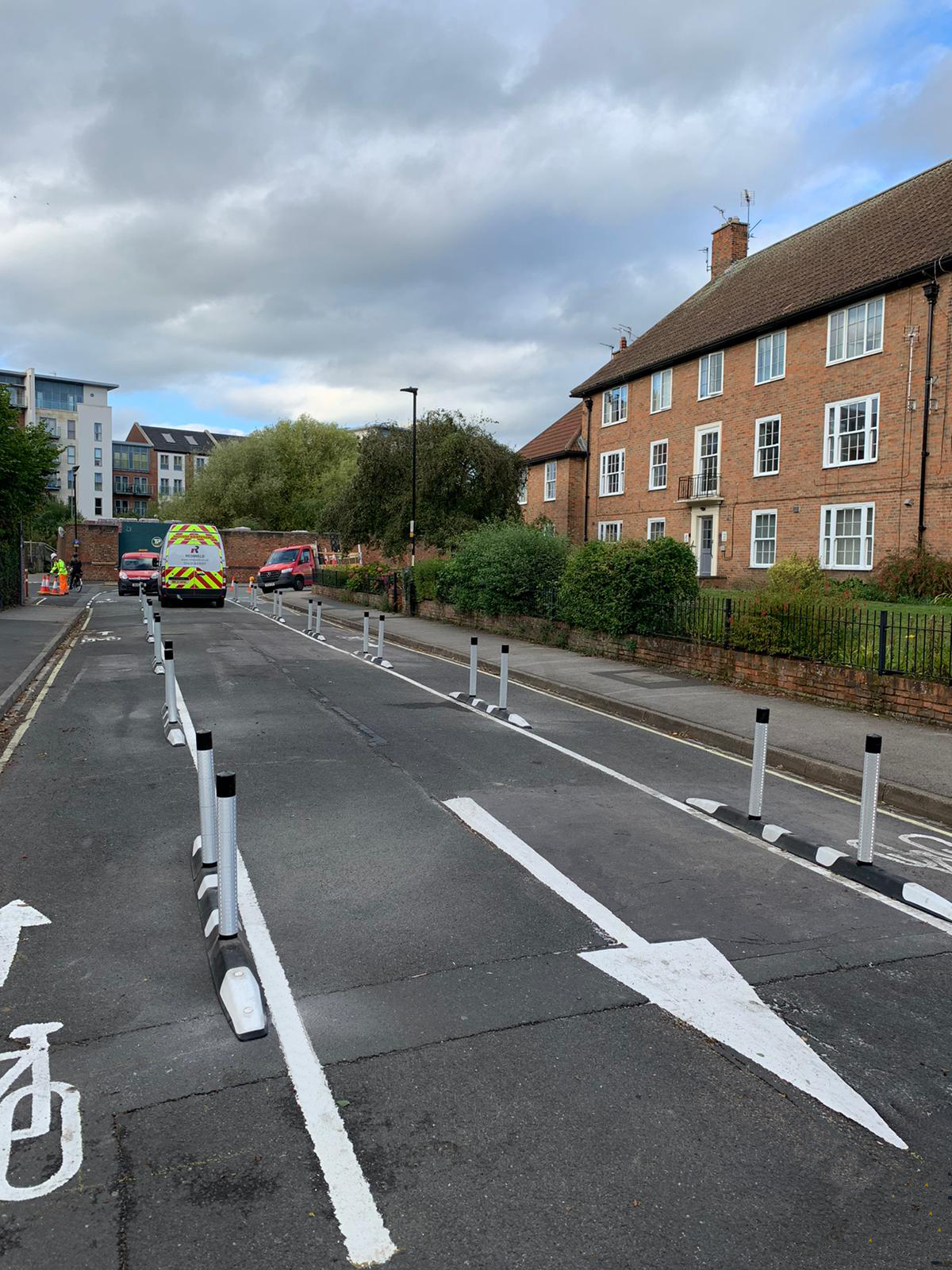

Greenwich WandOrcas with Jislon Pole Cones
Greenwich_WandOrca_Jislon_Pole_Cone_Cycle_Lane_Products_Rediweld_Traffic_2

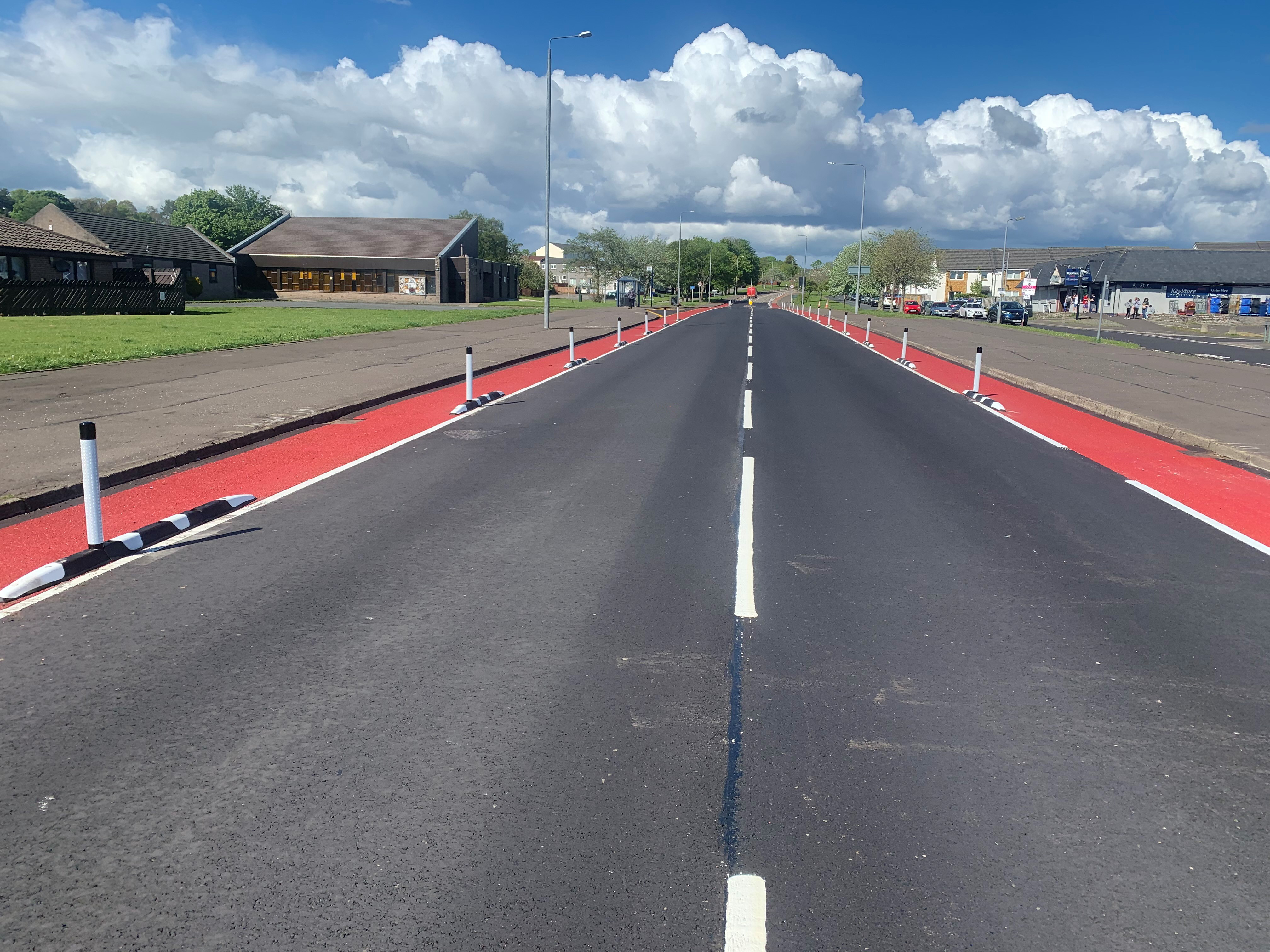

Greenwich WandOrcas with Jislon Pole Cones

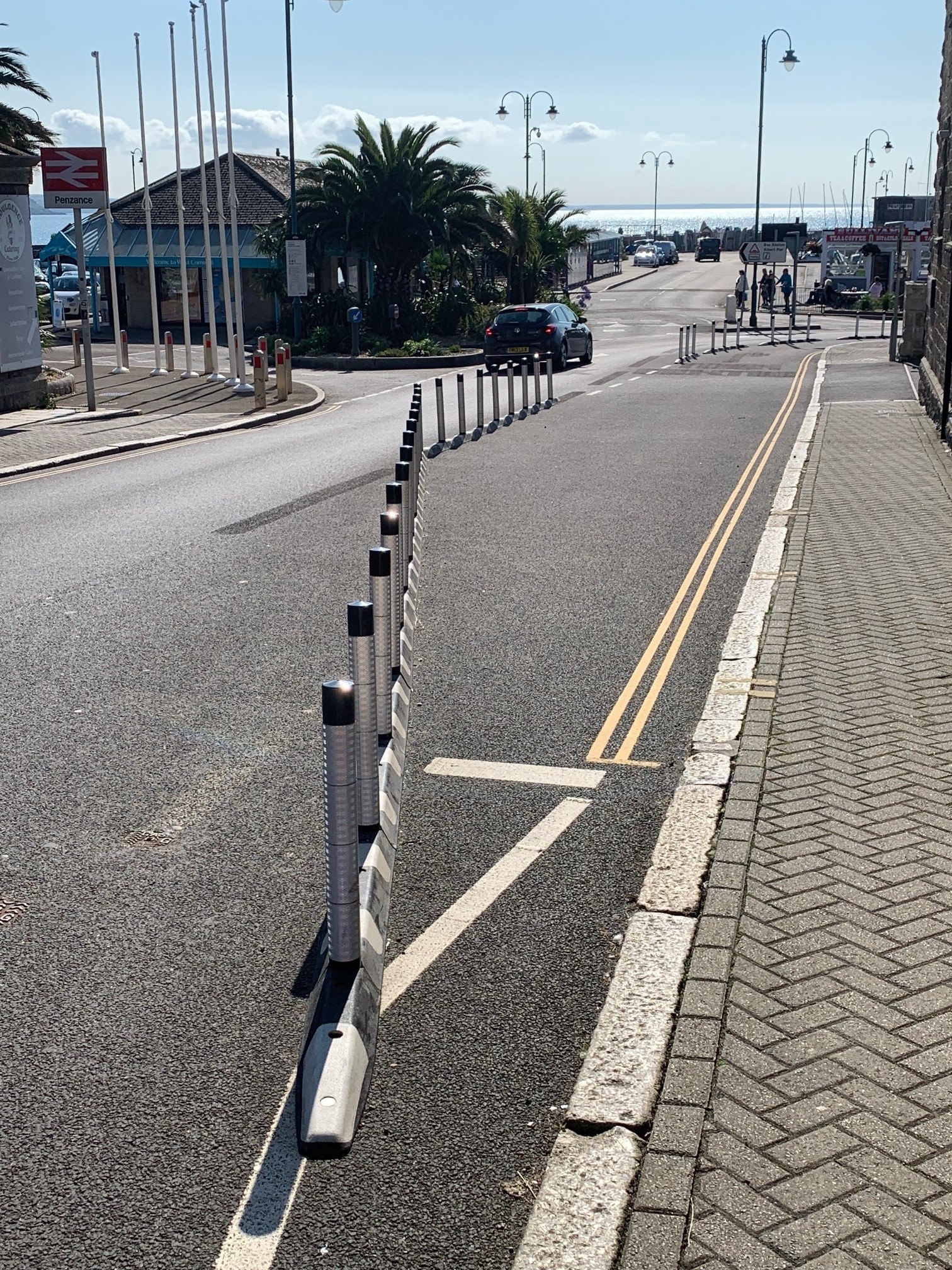

The WandOrca combines vertical Jislon Pole Cones (Wands) with reflective TSRGD markings, together with horizontal rubber modules. This is ideal for segregation over longer distances where vehicle speeds may be higher.

The WandOrca also offers a rubber bung with a reflective glass dome which can be used instead of the Jislon Pole Cone.



Spacings for the Greenwich Wand Orcas will depend on location and application but typically 10m to 25m. However they can be spread to allow for cleaning vehicles to access the cycle lane, but typically 10m to 25m.

Jislon Pole Cones are available in 800mm high or 1000mm heights, colour Black with TSRGD reflective banding and offer a NSE fixing for quick installation.

Greenwich WandOrca

Technical Information


Model WandOrca End Section WandOrca Middle Section
Colour Black/White (Red, Grey or Granite Grey) Black/White (Red, Grey or Granite Grey)
Fixings 3 x per end 4 x per middle
Width 175mm 175mm
Length 750mm 1000mm
Height 80mm 80mm
Weight 7.0kg 10.5kg

Frequently asked questions

Can’t find the answer you’re looking for? Reach out to our customer support team

Method Statement

Download our Greenwich WandOrca installation sheet
