Orca Cycle Lane Separator

The “Orca” is a standalone cycle lane product providing a cost effective solution, it has distinctive white markings which are moulded in at time of manufacture. This offers high visibility, longevity and is available with Zig Zag or Tip Toe options and colour Black

Cycle Lane Products

Orca

Orca_Bike_Testing_Rediweld_Traffc
Orca Cycle Lane Separator
Orca_Jislon_Pole_Cone_Rediweld_Traffic

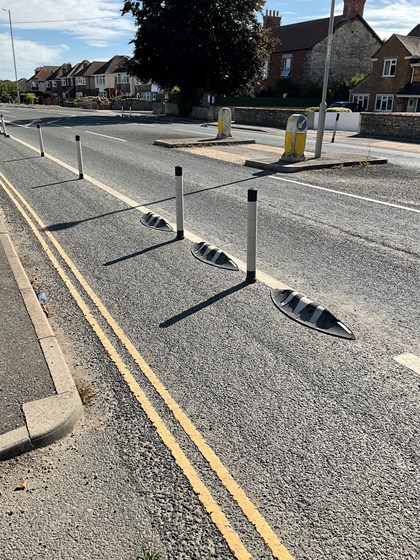

Orca Cycle Lane Separators & Jislon Pole Cones
One_Piece_Wand_Orca_Jislon_Pole_Cone_Rediweld_Traffic_6

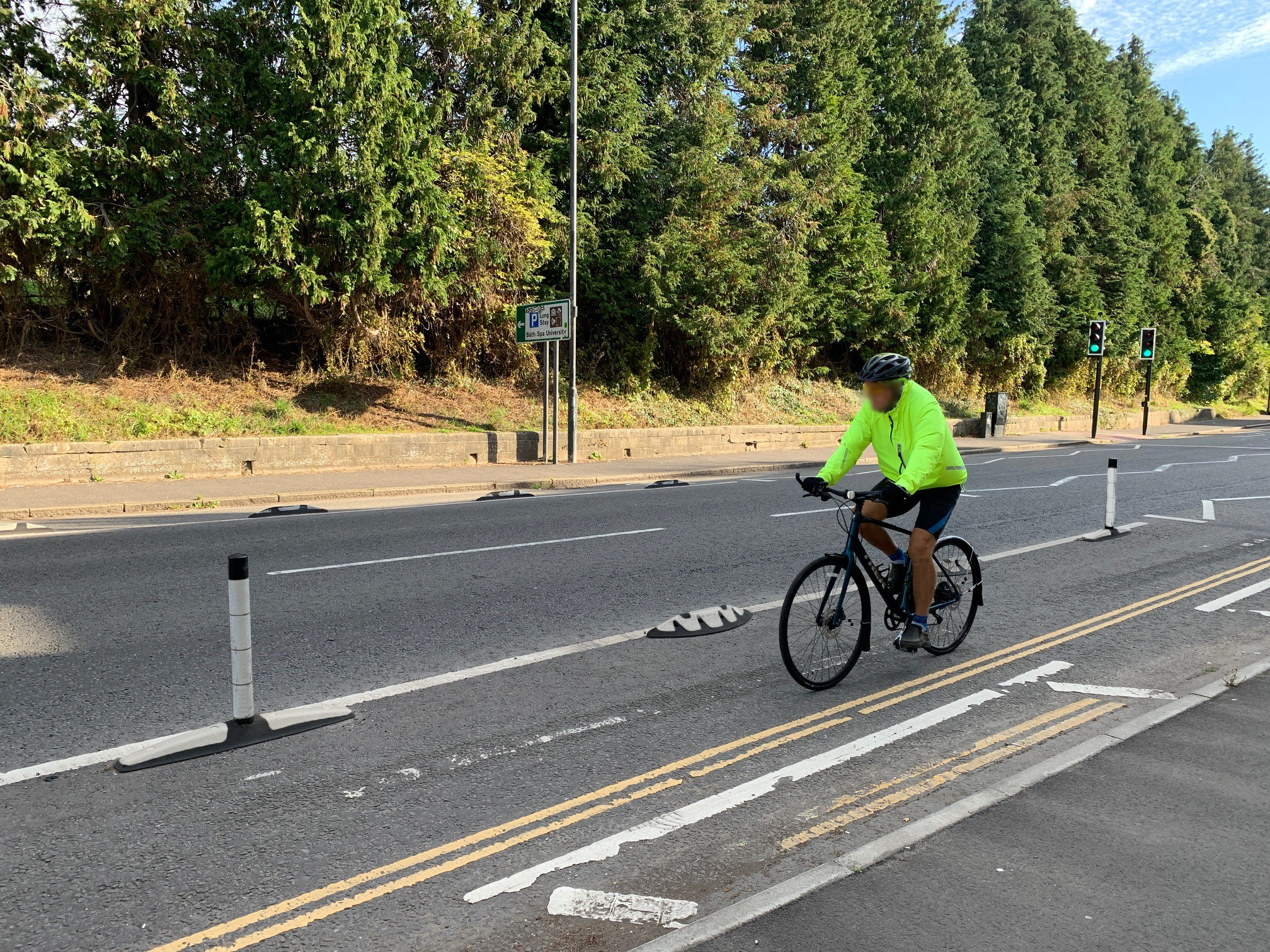

One Piece WandOrcas with Jislon Pole Cones & Orca Cycle Lane Separators
One_Piece_Wand_Orca_Jislon_Pole_Cone_Rediweld_Traffic_5
One Piece WandOrcas with Jislon Pole Cones & Orca Cycle Lane Separators
Orca_CAD_Rediweld_Traffic
Orca Cycle Lane Separator

The Orca Cycle Lane Separator is designed to provide light segregation as a stand alone product.

The Orca provides protection to cyclists offering a concave profile for safety and a half battered profile which is a familiar kerb face to drivers.

The Orca is designed to be placed within the cycle lane and positioned up to the white marking which highlights the edge of the carriageway.

The product is classed as a kerb and must not sit on the line otherwise this would conflict with current TSRGD guidelines.

Typical spacing are from 2.5mtr and up to 10mtr depending on the application or location.

Orca

Technical Information

Complete System
Manually handled with no infill required and relocatable

Clever Design
Half Battered Kerb face on the vehicle side to deter drivers and a cycle friendly concave face on the cycle side to protect cyclists

Markings
Moulded in markings for high visibility and longevity, choice of markings with ‘Zig Zag’ and ‘Tip Toe’ styles

Easy Installation
Installed up to 75No. per day (with a 2m gap that is over 215 metres covered)

Minimum Disruption
To users and the public

Surface Mounted
Bolt down with no excavation and no spoil

Environment
Recycled product made in the UK





Model ORCA Zig Zag ORCA Tip Toe
Colour Black/White - Zig Zag Black/White - Tip Toe
Fixings 4 4
Width 200mm 200mm
Length

920mm

920mm

Height

100mm

100mm

Weight 6.5kg 6.5kg
