Jislon City Pole Cones

Jislon City Pole Cones for Urban use, available in 80mm or 130mm dia, available in different options and reflective beading for night time visibility top and bottom

Rediweld Traffic Products

Jislon City Pole Cones

Jislon_City_Pole_Cone_Rediweld _Traffic
Jislon City Pole Cones
Jislon_City_Pole_Cones_Silver_Rediweld_Traffic
Jislon City Pole Cones - Stainless Steel
Jislon_City_Pole_Cones_Rediweld_Traffic_2
Jislon City Pole Cones
Jislon_City_Pole_Cone_Rediweld_Traffic
Jislon City Pole Cones

Jislon City Pole Cones offer elegant designs for planners and engineers to achieve uncluttered streetscapes. Jislon City Pole Cones are available as Ø 80mm, height 800mm (NS or NSE) and Ø 130mm, height 800mm or 1000mm (NS only)





Easy Installation
Quick and easy to install and can be swiftly relocated.

Low Maintenance
Reducing the need of costly traffic management.

Rebound
Crash friendly designed to rebound 1,000 times.

High Visibility
Improves safety at hazardous locations.

Flexibility
Suitable for use in many applications.

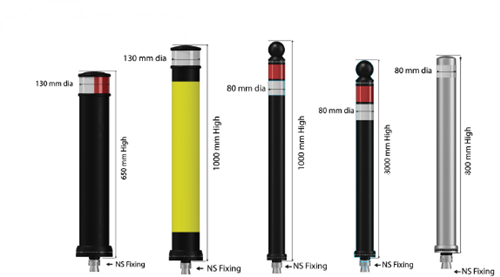

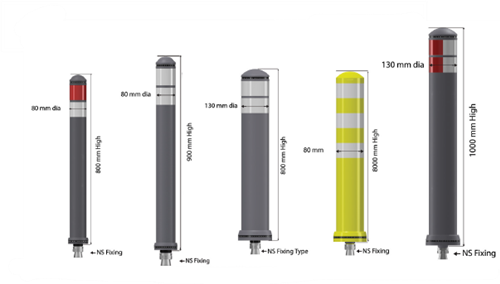

City Pole Cone

Technical Information


Model Classic City Classic City  City Ball Top City Ring Top City Silver
Colour Grey/White Grey/White Black/White Black/White Silver/White
Fixing NS NS NS NS NS
Section Ø 80mm Ø 130mm Ø 80mm Ø 80mm Ø 80mm
Above Ground

800mm

800mm 1000mm 900mm 800mm
Weight 2.10kg 3.25kg 2.7kg 2.5kg 2.10kg





Model Urban DK-9 Urban DK-10
Colour Grey/White or Brown/White Grey/White
Fixing embedded tube embedded tube
Section Ø 130mm Ø 130mm
Above Ground

800mm

850mm
Below Ground

200mm

200mm
Weight 9.8kg 9.7kg





Colour options for both Ring Top and Ball Top City Pole Cones only





Reflective tape options for Pole Cones



**Please call to check stock and availability.

Frequently asked questions

Can’t find the answer you’re looking for? Reach out to our customer support team

What is the difference between a NS and NSE Fixing on Jislon Posts?

NS Fixings

  • Stronger fixings for High speed Roads
  • Can be removed
  • Has a locking Washer Rubber Cap available
  • Can be fitted on decking to a depth of 70mm

NSE Fixings

  • Quick to install 5-10 minutes per post
  • More Temporary
  • Grub Screw available for relocation
  • Cheaper

Method Statement

Download our Jislon installation sheets for NS, NSE, and NF options and DK-9 and DK-10 information
